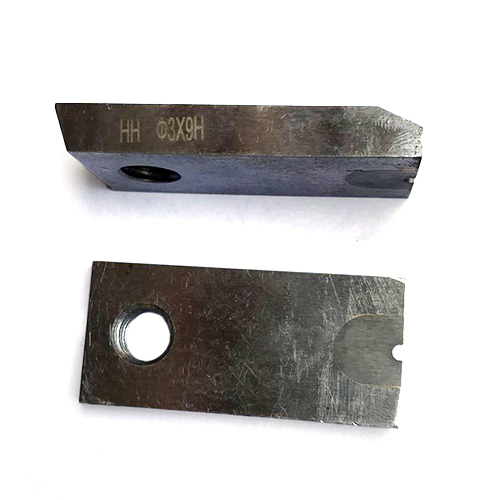

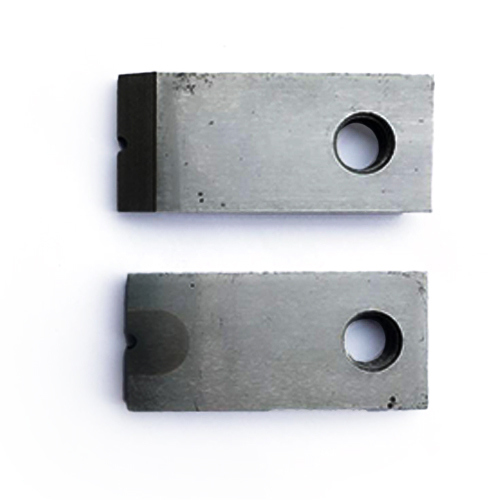

YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making

YG15 Material Tungsten Carbide Die

Customized Size Carbide Cutter Die

Steel Case Screw Mold Die

Lugar de origen:

Chongqing, China

Nombre de la marca:

Henghui

Certificación:

ISO 9001.2015

Número de modelo:

OEM

Contacta con nosotros

Solicitar una cita

YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making

Detalles del producto

Modo de conformación:

Forjar moho

Material del producto:

Die de acero y carburo

Tolerancia:

+/- 0.01 mm

Tamaño:

personalizado

Software de diseño:

El CAD

Tratamiento superficial:

Pulido

Material del carburo:

VA80

Material de caja:

Acero

Contenido del Co:

20%

Tamaño de grano:

3~6

Densidad:

13.58 g/cm²

Dureza:

84.0 HRA

TRS:

280 kgf/mm²

Fuerza de impacto:

0.85 kgf/m-cm²

Dureza superficial:

HRC46 a 48

Condiciones de pago y envío

Cantidad de orden mínima

PRODUCTOS RELACIONADOS

Herramienta de perforación de tornillo industrial acero endurecido punzón de cambio rápido de alta precisión mecanizado CNC

Consiga el mejor precio

Customized Cold Heading Nut Mold with Alloy Material and Square Shape for Industrial Applications

Consiga el mejor precio

Precision Thread Rolling Die with +/-0.01mm Tolerance High Accuracy and Long Life for Screw Making

Consiga el mejor precio

YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making

Consiga el mejor precio

Contacta con nosotros

+8613983025528

hou@citool.com

86-023-60338218-60338218

Contacta ahora

Descripción del producto

Factory Price Carbide Cutter Die Screw Mold With Material of YG15 Cutting Knife

Product Description

Insert Material Options

We offer various carbide materials tailored for different applications:

Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Medium-Grained
KG2	6.50%	2~3 μm	14.90 g/cm²	90.5 HRA	320 Kgf/mm²	0.28 Kgf/m-cm²	Drawing die
KG3	9%	2~3 μm	14.61 g/cm²	89.3 HRA	340 Kgf/mm²	0.52 Kgf/m-cm²	Extrusion die
KG5	12%	2~3 μm	14.31 g/cm²	88.3 HRA	340 Kgf/mm²	0.58 Kgf/m-cm²	Extrusion die
KG6	14%	2~3 μm	14.12 g/cm²	87.3 HRA	320 Kgf/mm²	0.65 Kgf/m-cm²	Extrusion die
Coarse-Grained
ST6	15%	3~6 μm	13.80 g/cm²	86.0 HRA	270 Kgf/mm²	0.78 Kgf/m-cm²	Stainless steel
ST7	20%	2~6 μm	13.40 g/cm²	85.3 HRA	270 Kgf/mm²	0.80 Kgf/m-cm²	Stainless steel
EA65	18%	2~6 μm	13.73 g/cm²	85.0 HRA	300 Kgf/mm²	0.80 Kgf/m-cm²	Carbon steel screw/cutting die
VA80	20%	3~6 μm	13.58 g/cm²	84.0 HRA	280 Kgf/mm²	0.85 Kgf/m-cm²	Impact resistance
VA90	22%	6~9 μm	13.39 g/cm²	82.5 HRA	240 Kgf/mm²	0.90 Kgf/m-cm²	Impact resistance
EA90	24%	2~6 μm	13.22 g/cm²	82.8 HRA	270 Kgf/mm²	0.90 Kgf/m-cm²	Impact resistance

Case Material

Primary case material: H13 (SKD61) HRC46-48

SKD61 (H13) Chemical Composition
Element	C	Si	Mn	P	S	Cr	Mo	V
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94
Element	W	Cu	Ni
Content (%)	0.06	0.05	0.06

Surface Treatment

Available treatments: TiN / TiAlN

Inspection Equipment

Company Profile

About Chongqing Henghui Precision Mold Co., Ltd

Located in Chongqing, we specialize in developing, producing, and selling high-quality tungsten carbide dies. Our products are manufactured using high-precision equipment and rigorous quality control processes, supported by experienced technical engineers and quality inspection teams. We operate under ISO 9001 quality management and ERP systems.

Our products serve the Asian market and are exported to Europe, America, and Southeast Asia, recognized for their precision, efficiency, stability, and durability. Our customer-focused sales team provides attentive service to create maximum value for clients.

Exhibition Participation

Customer Commitment

We actively participate in international exhibitions including Russia, Mexico, Turkey, Shanghai, German Fastener, and Indian Fastener exhibitions. These events allow us to connect with new partners while maintaining relationships with existing clients.

At each exhibition, we carefully prepare samples that consistently impress attendees with their design, competitive pricing, and superior quality.
