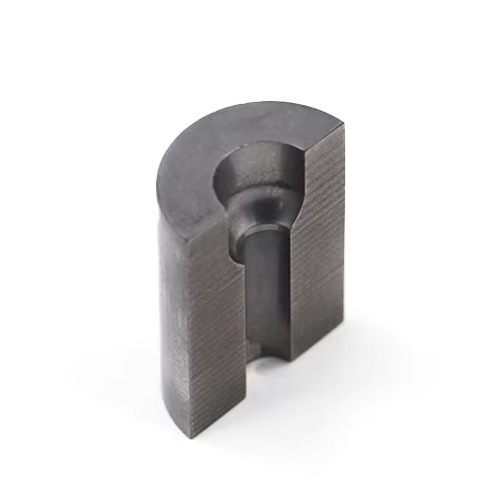

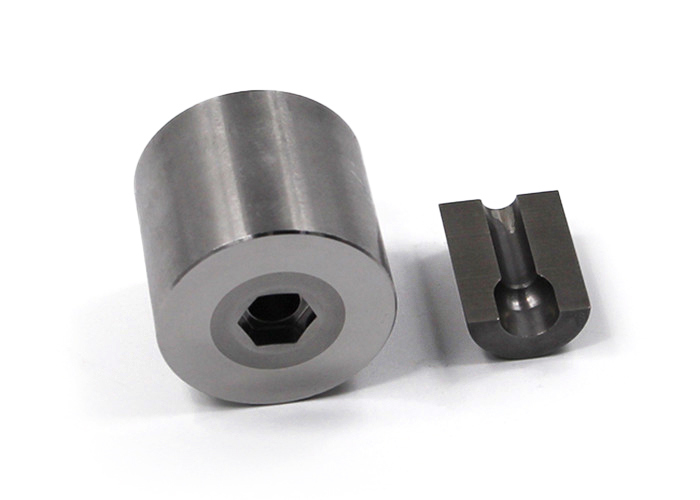

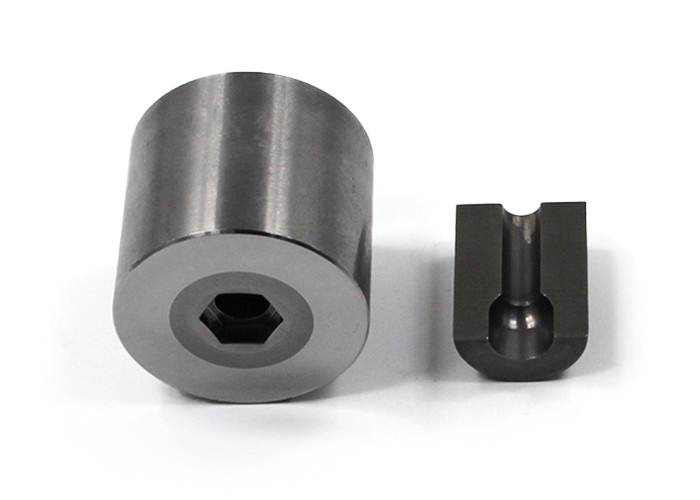

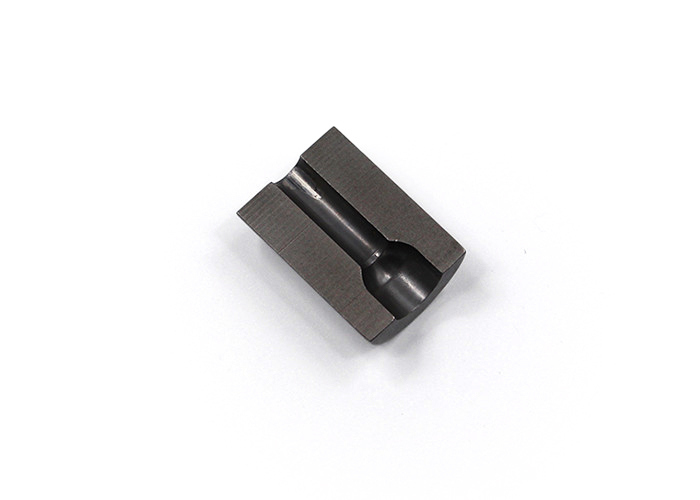

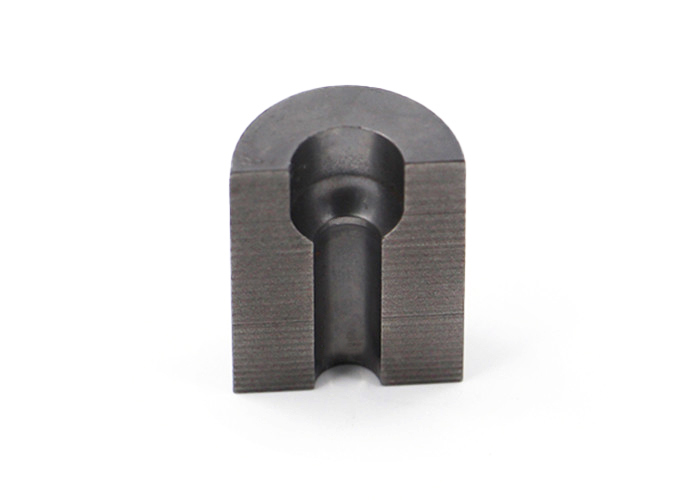

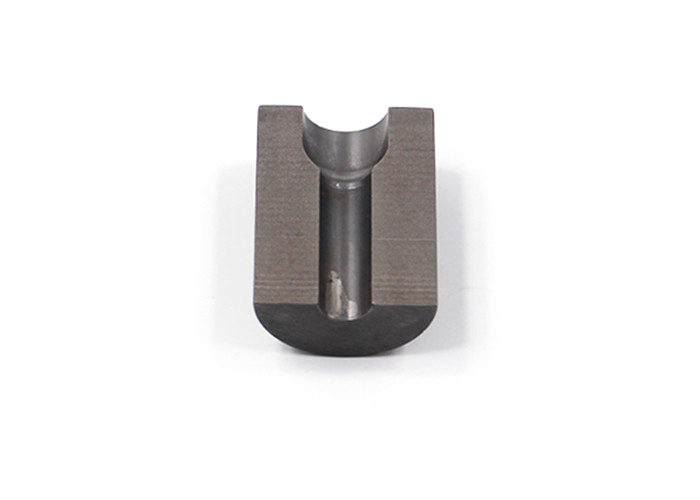

Name: Henghui Tungsten Carbide Die VA80 Material High Hardness Long Service Life Custom Size Screw Mold
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: - ¿ Qué pasa?
Price: 100.00 USD
Availability: InStock

En casa > productos > Troquel de carburo de tungsteno >

Henghui Tungsten Carbide Die VA80 Material High Hardness Long Service Life Custom Size Screw Mold

VA80 Material Tungsten Carbide Die

Long Service Life Screw Mold

Custom Size Carbide Die

Lugar de origen:

Chongqing, China

Nombre de la marca:

Número de modelo:

- ¿ Qué pasa?

Contacta con nosotros

Solicitar una cita

Henghui Tungsten Carbide Die VA80 Material High Hardness Long Service Life Custom Size Screw Mold

Detalles del producto

Modo de conformación:

Moldeo

Material del producto:

Acero

Material del carburo:

VA80

Material de caja:

H13, SKD11

Condición superficial:

Carburo de tungsteno molido o sin tierra o recubierto

Tratamiento superficial:

Lata / tialn

Densidad:

13.58 g/cm²

Dureza:

84.0 HRA

TRS:

280 kgf/mm²

Fuerza de impacto:

0.85 kgf/m-cm²

Tamaño de grano:

3 ~ 6 μm

Contenido de cobalto:

20%

Desviación relativa:

0.005 mm

Concentricidad:

0.01 mm

Acabado superficial:

Pulido

Condiciones de pago y envío

Cantidad de orden mínima

PRODUCTOS RELACIONADOS

Herramienta de perforación de tornillo industrial acero endurecido punzón de cambio rápido de alta precisión mecanizado CNC

Consiga el mejor precio

Customized Cold Heading Nut Mold with Alloy Material and Square Shape for Industrial Applications

Consiga el mejor precio

Precision Thread Rolling Die with +/-0.01mm Tolerance High Accuracy and Long Life for Screw Making

Consiga el mejor precio

YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making

Consiga el mejor precio

Contacta con nosotros

+8613983025528

hou@citool.com

86-023-60338218-60338218

Contacta ahora

Descripción del producto

Henghui Tungsten Carbide Strong Beaming Die

High Hardness Long Service Life Screw Molds

Insert Material Options

We offer various carbide materials tailored to specific applications:

Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Medium-Grained
KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained
ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material

Primary case material: H13(SKD61) HRC46-48

SKD61(H13) Chemical Composition
C	Si	Mn	P	S	Cr	Mo	V	W
0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
Cu: 0.05%		Ni: 0.06%

Surface Treatment

Available treatments: TiN / TiAlN

Manufacturing Capabilities

About Chongqing Henghui Precision Mold Co., Ltd.

We specialize in designing and manufacturing high-quality precision molds for cold heading and hot upsetting industries. Our 7,000 square meter facility features:

CNC lathes, machining centers, and grinding machines
Precision measurement equipment including 3D imaging systems
Vacuum heat treatment capabilities
ISO9001:2015 certified quality management
Precision tolerance control (0.005mm standard deviation)

Our products are exported globally with a commitment to "Customer first, quality first, technology first, dedicated service".

Packaging & Delivery

Packaging: Carton Box; Export Standard Package, or as per client requirements
Delivery Time: 12-45 days depending on order quantity

Quality Assurance

Our Advantages

High quality materials and precision manufacturing
Competitive pricing
Reliable on-time delivery
Comprehensive after-sales service
Strict quality control throughout production

Customer Service Commitment

Prompt response to all inquiries
Timely quotations and design consultations
Regular progress updates with photos
Efficient mold testing and sample delivery
On-schedule final delivery

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory with 7,000 square meters of manufacturing plants and R&D bases.

Q2: Where is your factory located?

A2: Hailong Village, Baishiyi Town, Jiulongpo District, Chongqing City, China. Visitors are welcome.

Q3: What materials do you use?

A3: DC53, SKD11, D2, SKH-9, SKH-51, or as specified by clients.

Q4: What press capacities are available?

A4: Our factory has 30T, 60T, and 160T punching machines.

Q5: How do you ensure quality control?

A5: We implement rigorous quality control using 3D measuring equipment at all production stages.
